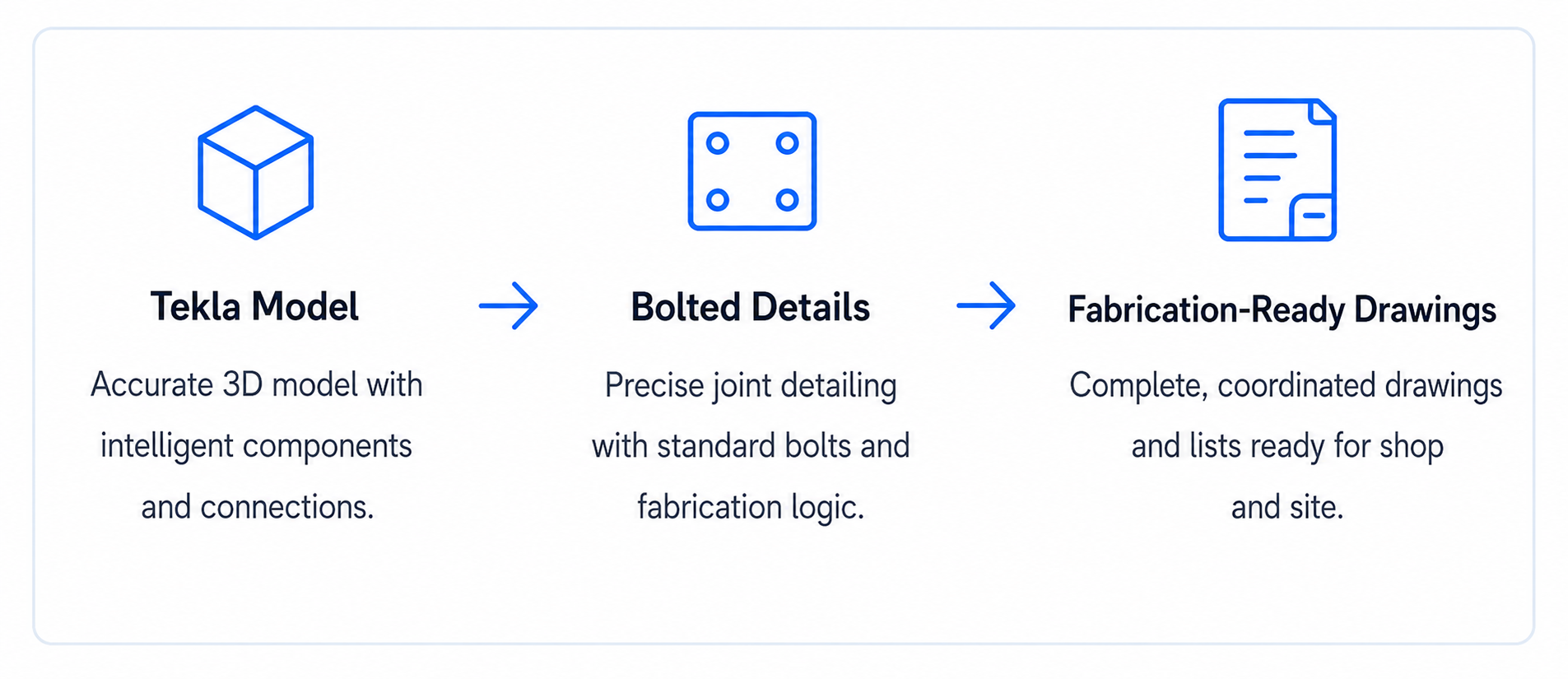

Design drawings prove that the structure works.Detailing drawings make the structure ready for fabrication, transport and assembly.We use Tekla-based detailing, bolted connection logic and DfMA thinking to reduce fabrication errors and site rework risks.
Section 2: CORE TECHNICAL CAPABILITIES
Detailing Based on DfMAand Buildability Logic
Section 3: DELIVERABLES & MATERIALS
Detailing Materials
You Will Receive

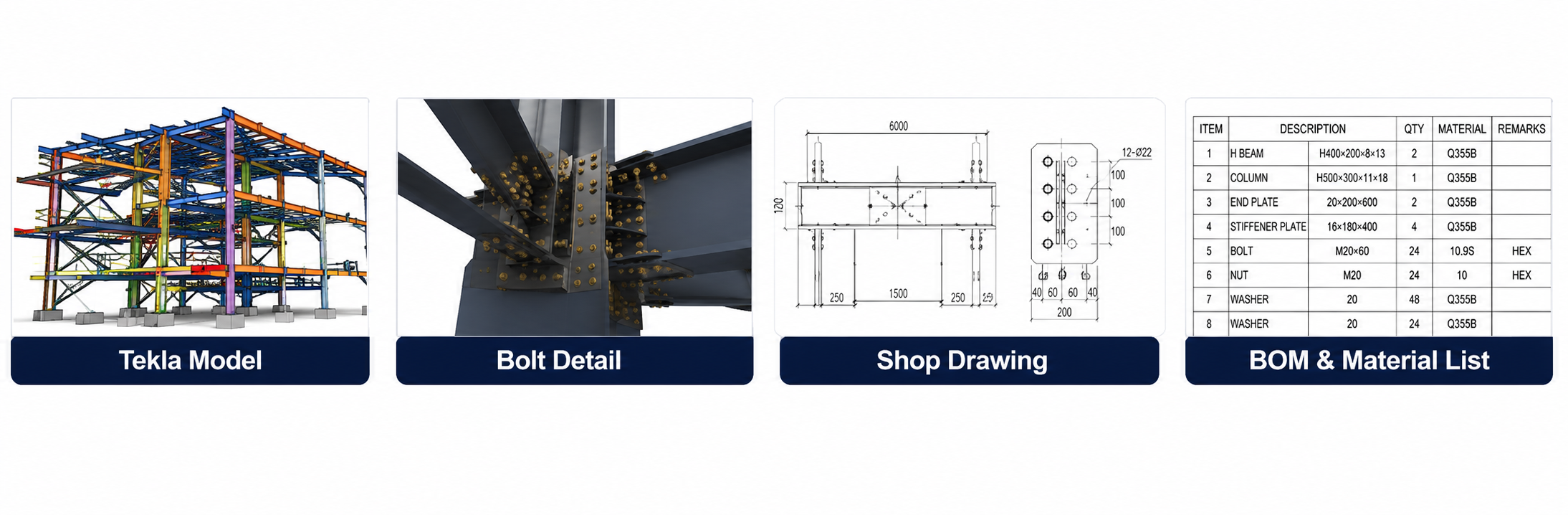

●Tekla 3D Model ●General Arrangement Drawings ●Shop Drawings ●Assembly Drawings ●Single Part Drawings ●Bolt List ●Material List / BOM ●Buildability Review Notes
Section 4: Simplified Applicable Standards
Section 5: Why Choose ARTISANSTRUCTURE
Engineering Judgment Beyond Software Results
We combine advanced analysis tools with engineering experienceand code knowledge to deliver safe, efficient and buildablestructural solutions
